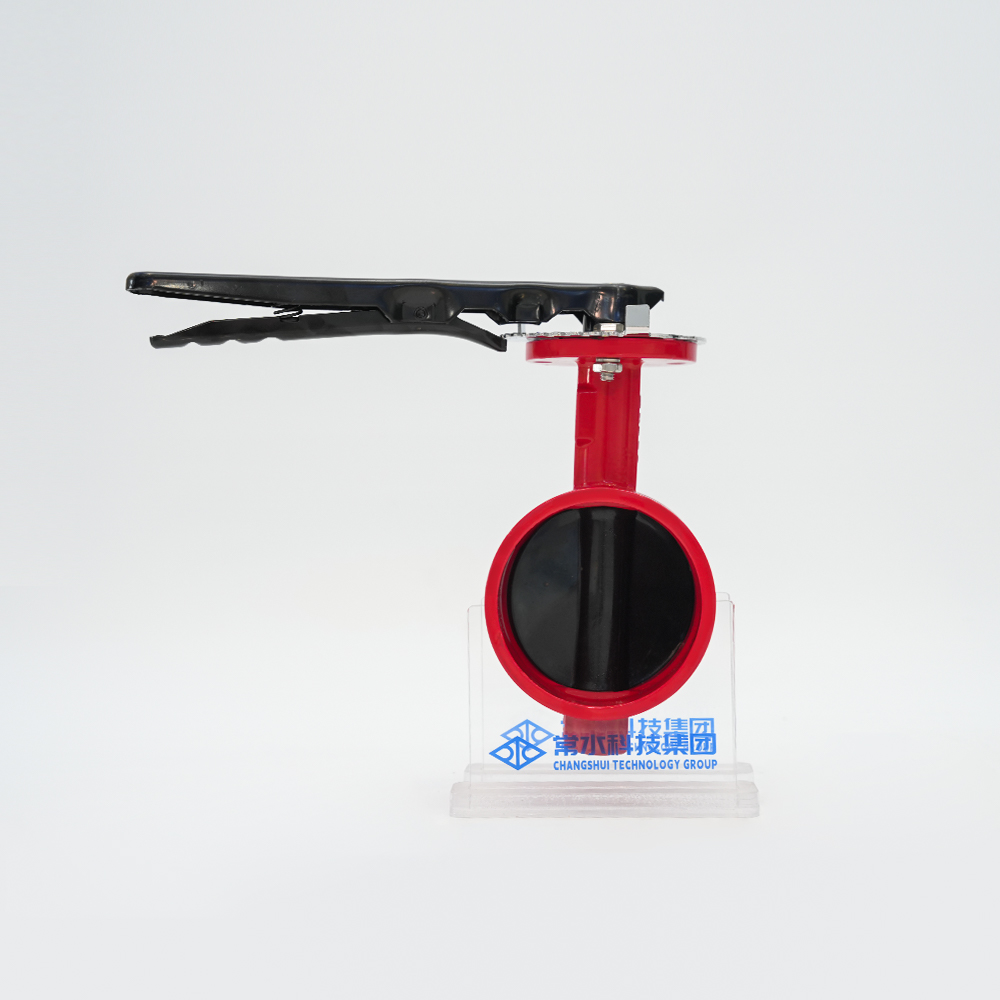

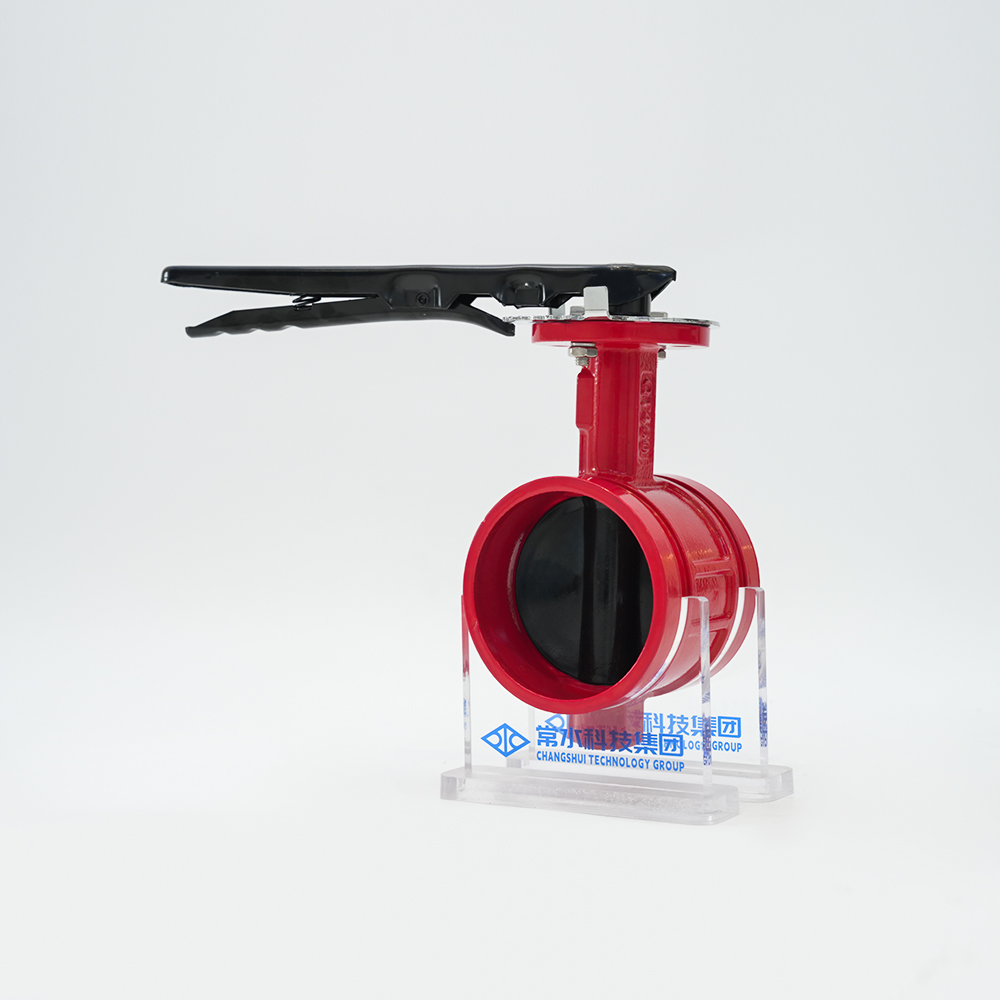

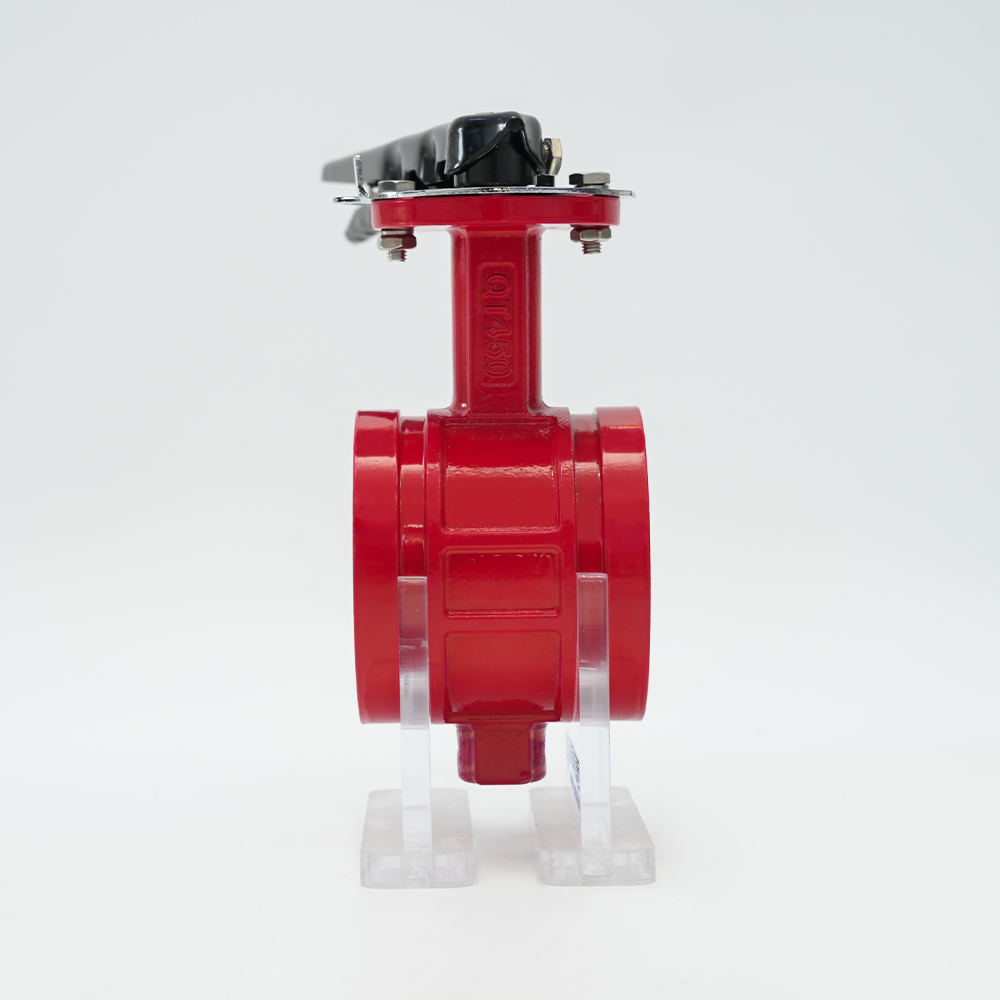

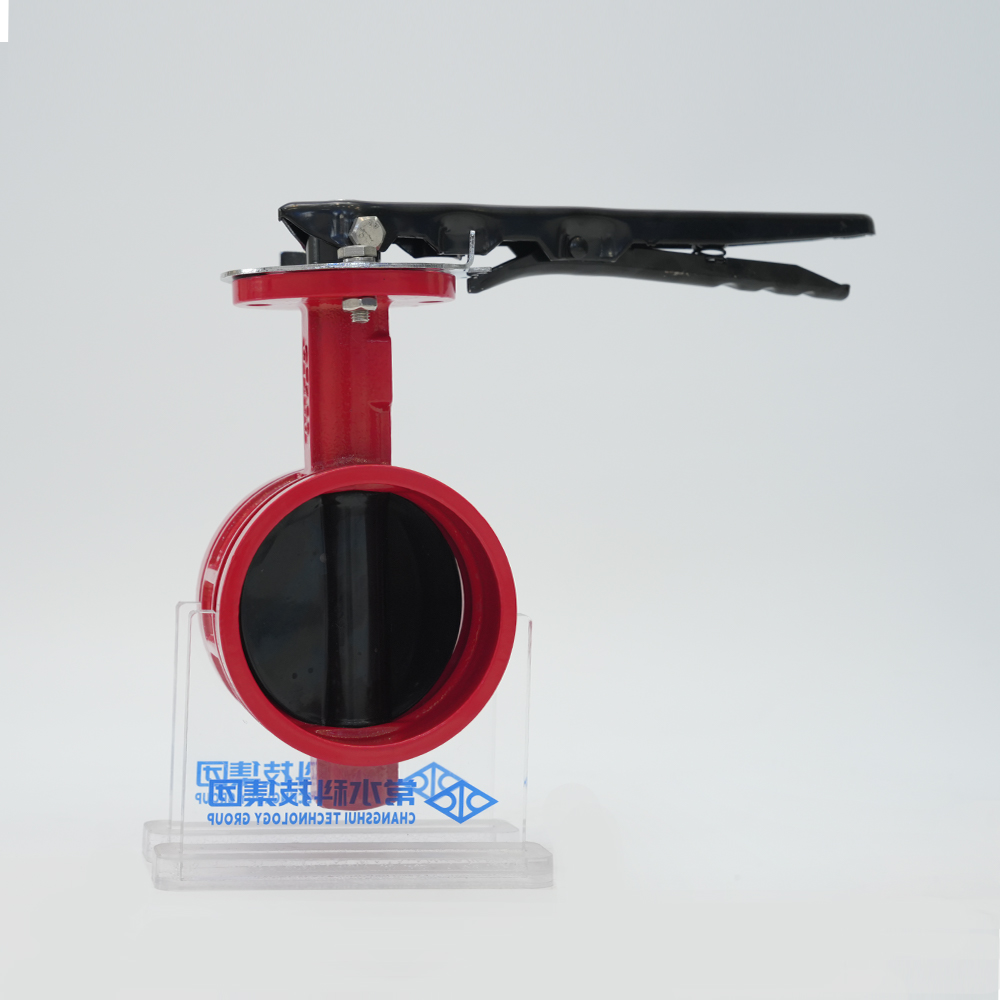

The grooved handle butterfly valve is light in weight, has a relatively fast switching speed, and a small operating distance. It has opening and closing scale words on it, which can easily identify the switching situation.
The grooved handle butterfly valve is light in weight, has a relatively fast switching speed, and a small operating distance. It has opening and closing scale words on it, which can easily identify the switching situation.
|
Body material |
Nodular cast iron |
|
Model |
D81X-16Q |
|
Specification |
DN50-200 |
|
Nominal pressure |
1.0/1.6/2.5Mpa |
|
Operating temperature |
0-80°C |
|
Applicable media |
water |
|
Design standards |
GB/24924-2016 |
Product Overview
This valve is a rubber (NBR) sealed butterfly valve, which is widely used in water supply and drainage pipeline systems in electric power, hydraulics, metallurgy, chemical industry, urban construction, and other industries as an opening and closing or regulating device to control the flow of media. The grooved (clamp) butterfly valve is a new type of connection valve designed and manufactured by introducing similar advanced products from the United States and Germany.
Features
It is fast, easy, and safe to install, is not restricted by the installation site, is convenient for maintenance of pipelines and valves, has vibration and sound insulation, and overcomes the deviation caused by the coaxial connection of pipelines within a certain angle range. It solves the advantages of thermal expansion and contraction caused by temperature differences.

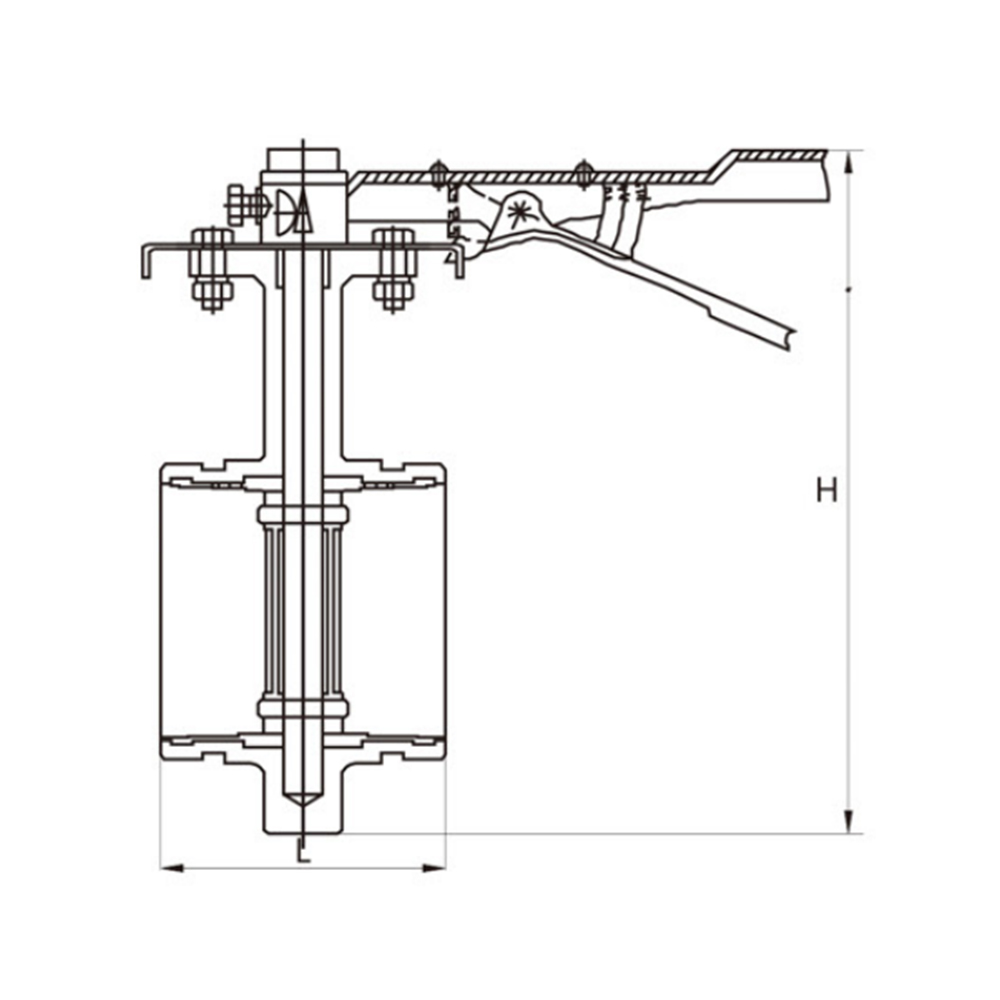

Product Parameters
| D81X-16Q | DN | 50 | 65 | 80 | 100 | 125 | 150 | ||
| L | 80 | 80 | 80 | 102 | 110 | 110 | |||
| H | 180 | 195 | 215 | 260 | 285 | 315 | |||
| Outer circle | 60 | 76 | 89 | 108 | 114 | 140 | 159 | 165 | |
