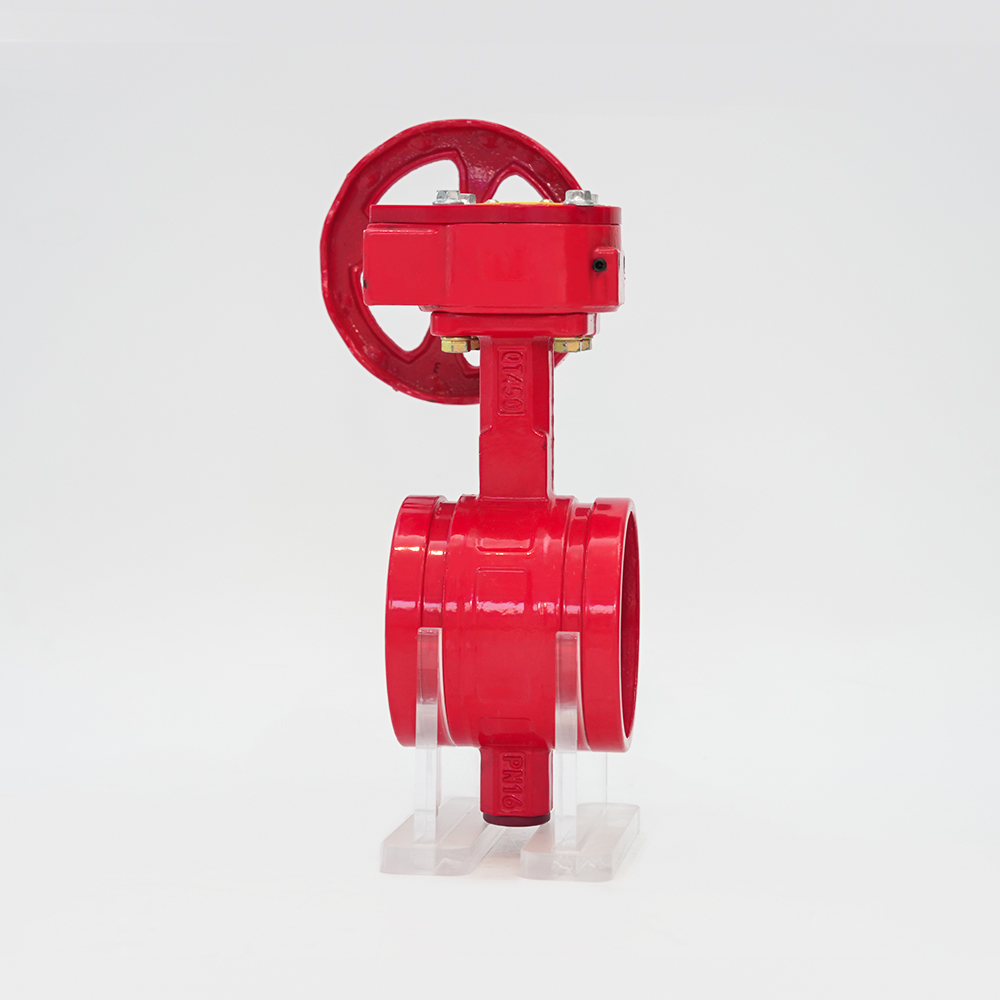

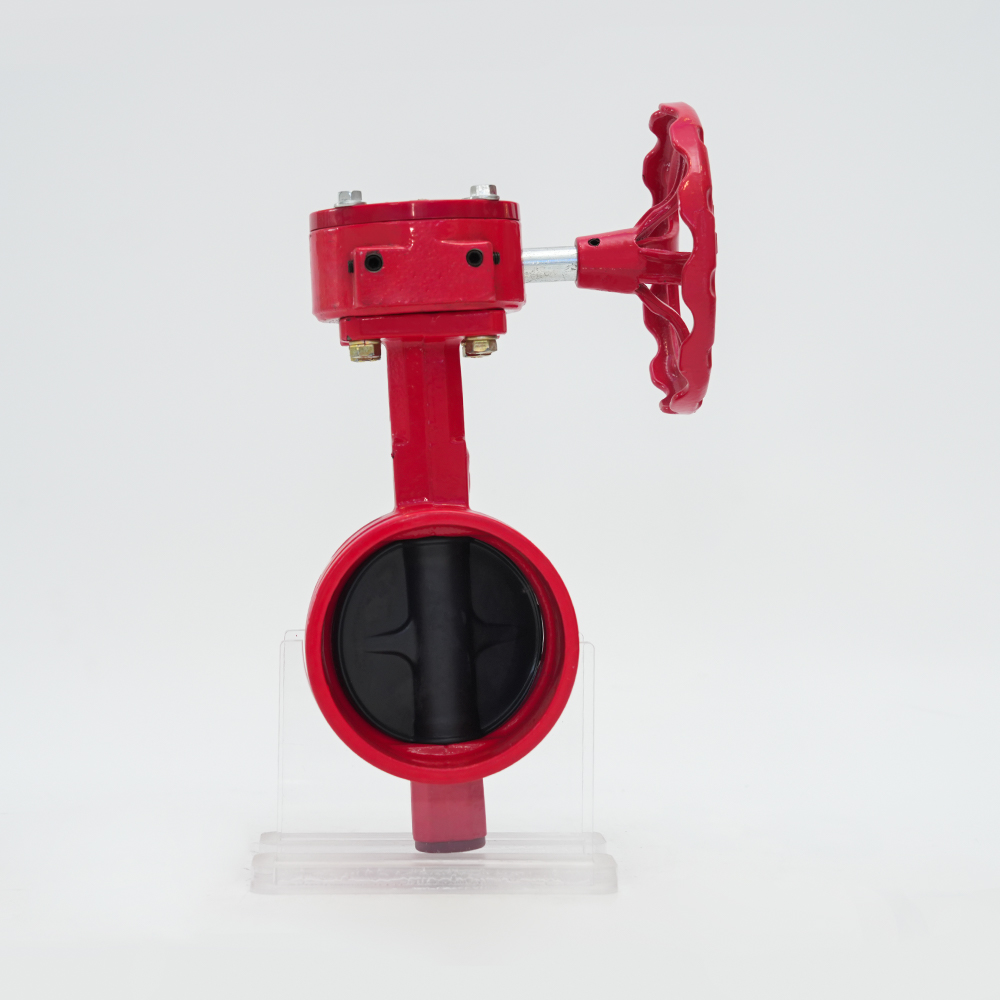

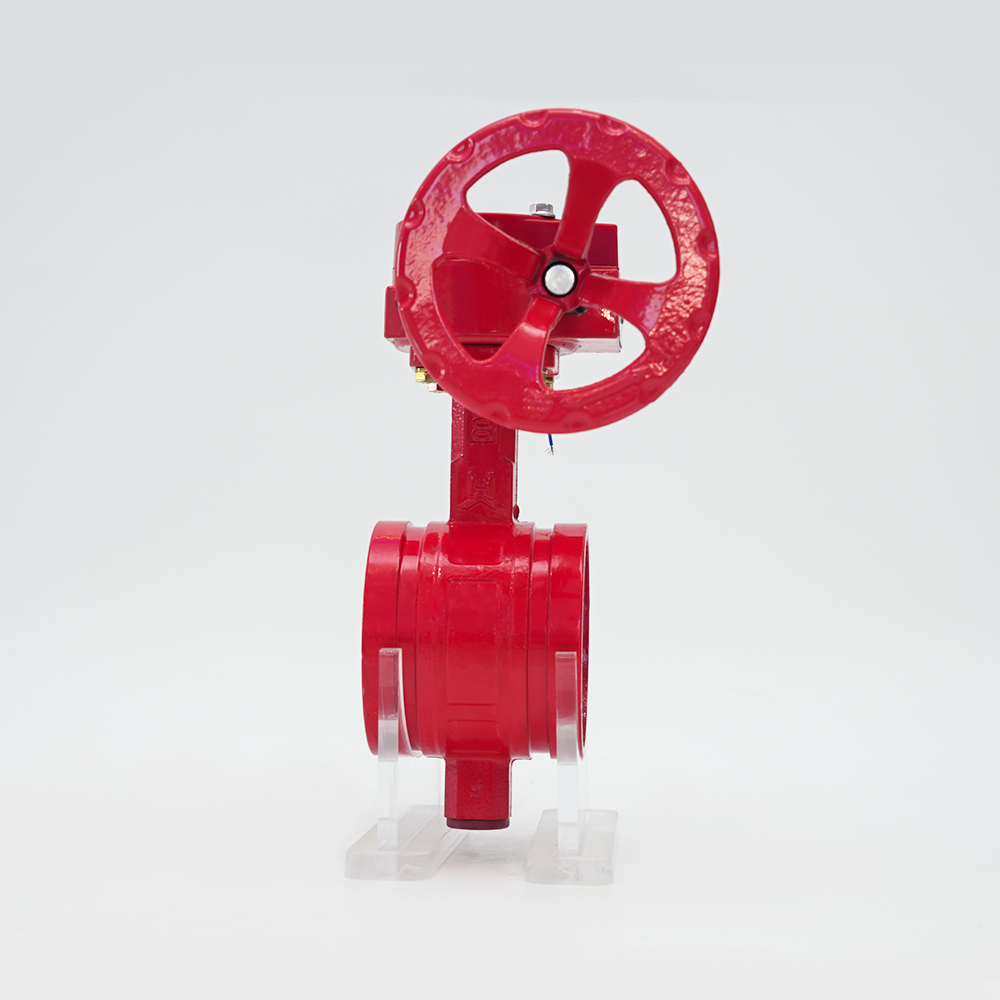

The grooved worm gear butterfly valve is light in weight, has a relatively fast switching speed and a small operating distance. It has opening and closing scale words on it, which can easily identify the switching situation.
The grooved worm gear butterfly valve is light in weight, has a relatively fast switching speed and a small operating distance. It has opening and closing scale words on it, which can easily identify the switching situation.
|
Body material |
Nodular cast iron |
|
Model |
D381X-16Q |
|
Specification |
DN50-300 |
|
Nominal pressure |
1.0/1.6/2.5Mpa |
|
Operating temperature |
0-80°C |
|
Applicable media |
water |
|
Design standards |
GB/24924-2011 |
Product Overview
The grooved worm gear butterfly valve is light in weight, has a relatively fast switching speed, and has a small operating distance. It has opening and closing scale words on it, which can easily identify the switching situation. Butterfly valves are widely used in water supply and drainage pipes in electric power, hydraulics, chemical industries, urban construction, and other industries. Road systems, sewage treatment systems, and other fields.
Features
It is fast, easy, and safe to install, is not restricted by the installation site, is convenient for maintenance of pipelines and valves, has vibration and sound insulation, and overcomes the deviation caused by the coaxial connection of pipelines within a certain angle range. It solves the advantages of thermal expansion and contraction caused by temperature differences.

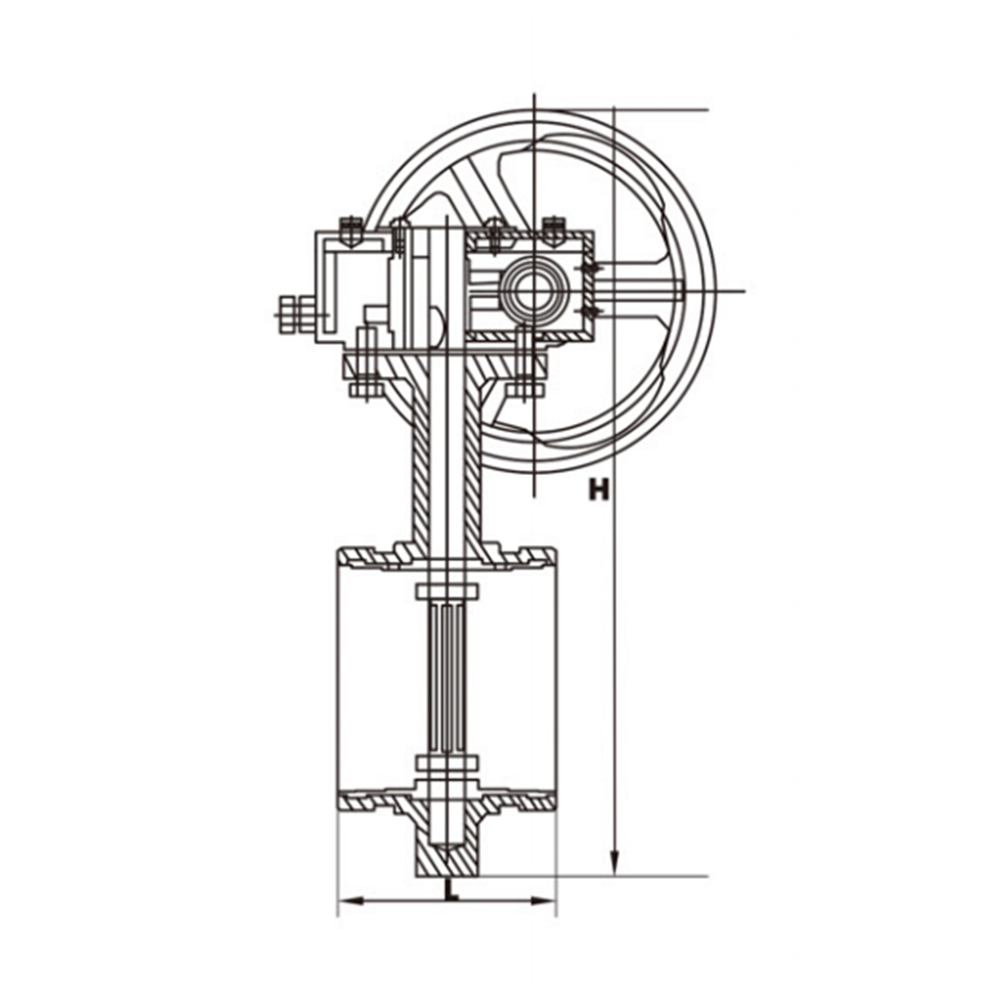

Product Parameters
| D381X-16Q | DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | ||
| L | 80 | 80 | 80 | 102 | 110 | 110 | 148 | 160 | 168 | |||
| H | 200 | 215 | 235 | 285 | 300 | 330 | 440 | 540 | 800 | |||
| Outer circle | 60 | 76 | 89 | 108 | 114 | 140 | 159 | 165 | 219 | 273 | 325 | |
