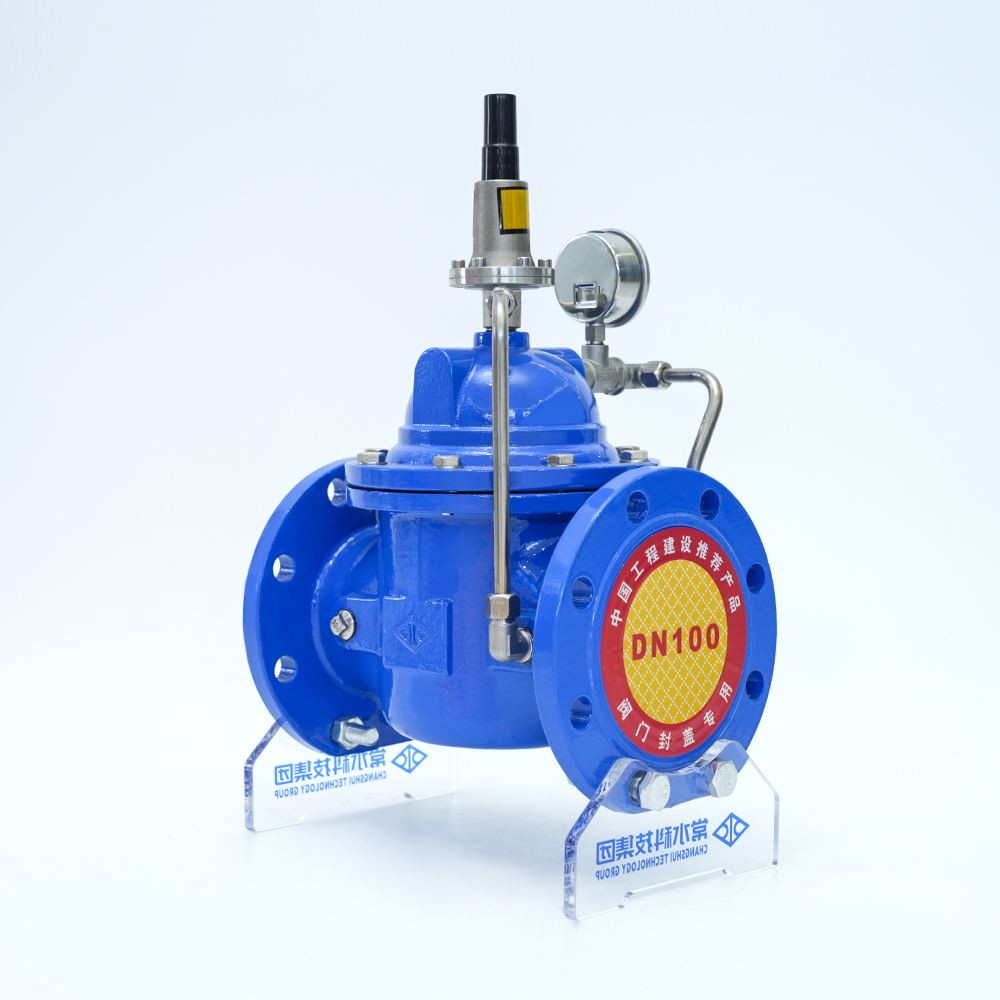

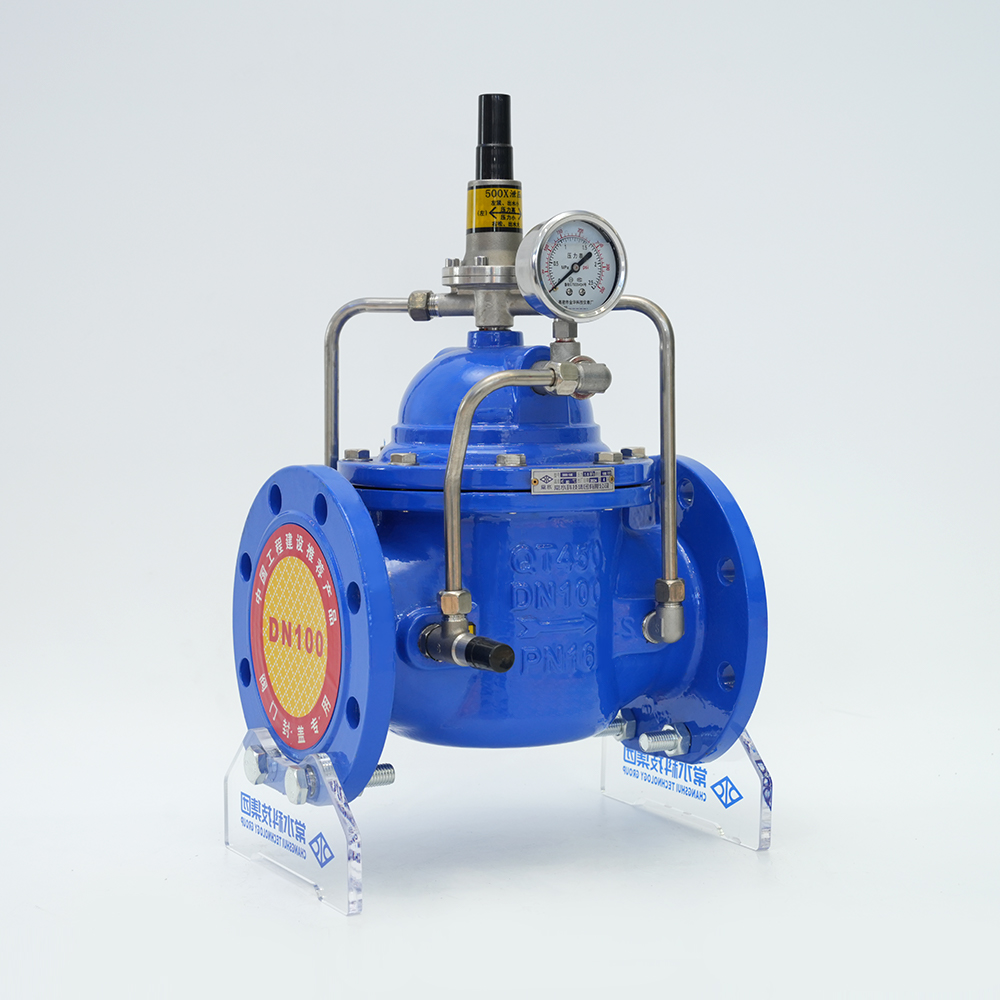

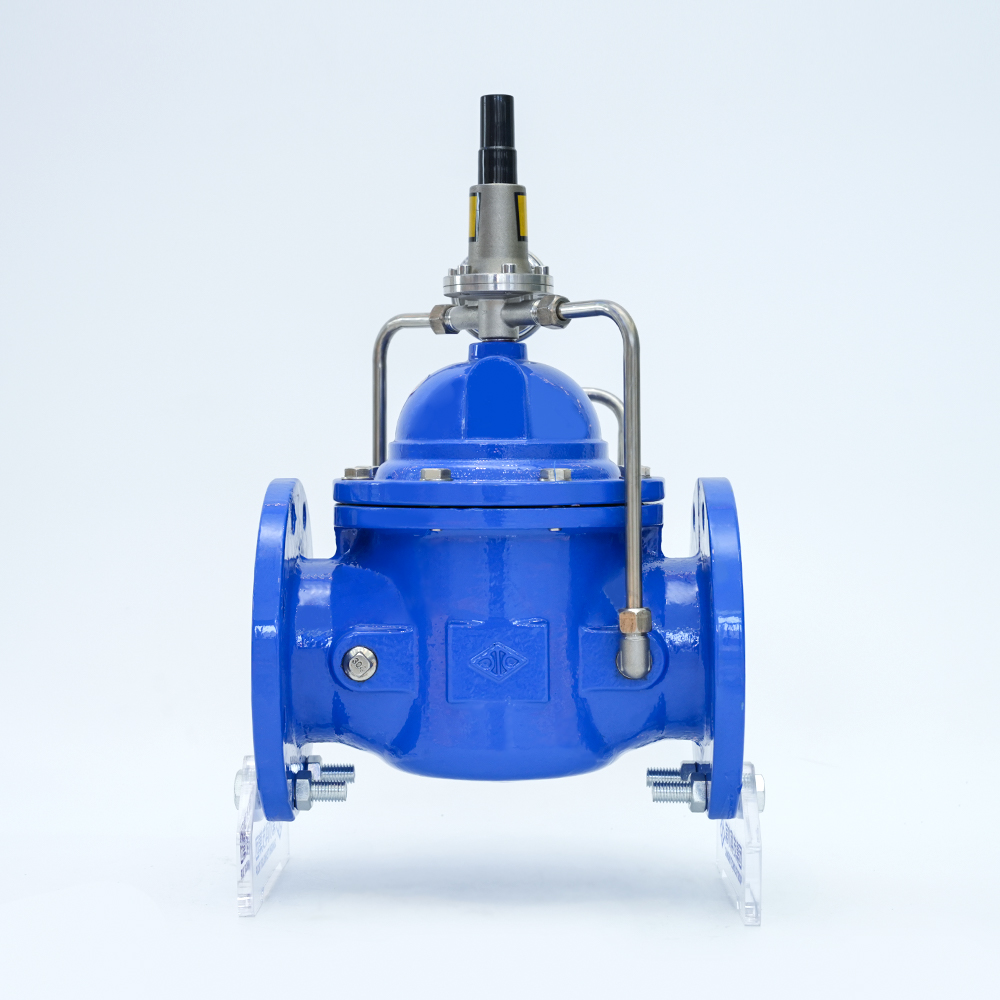

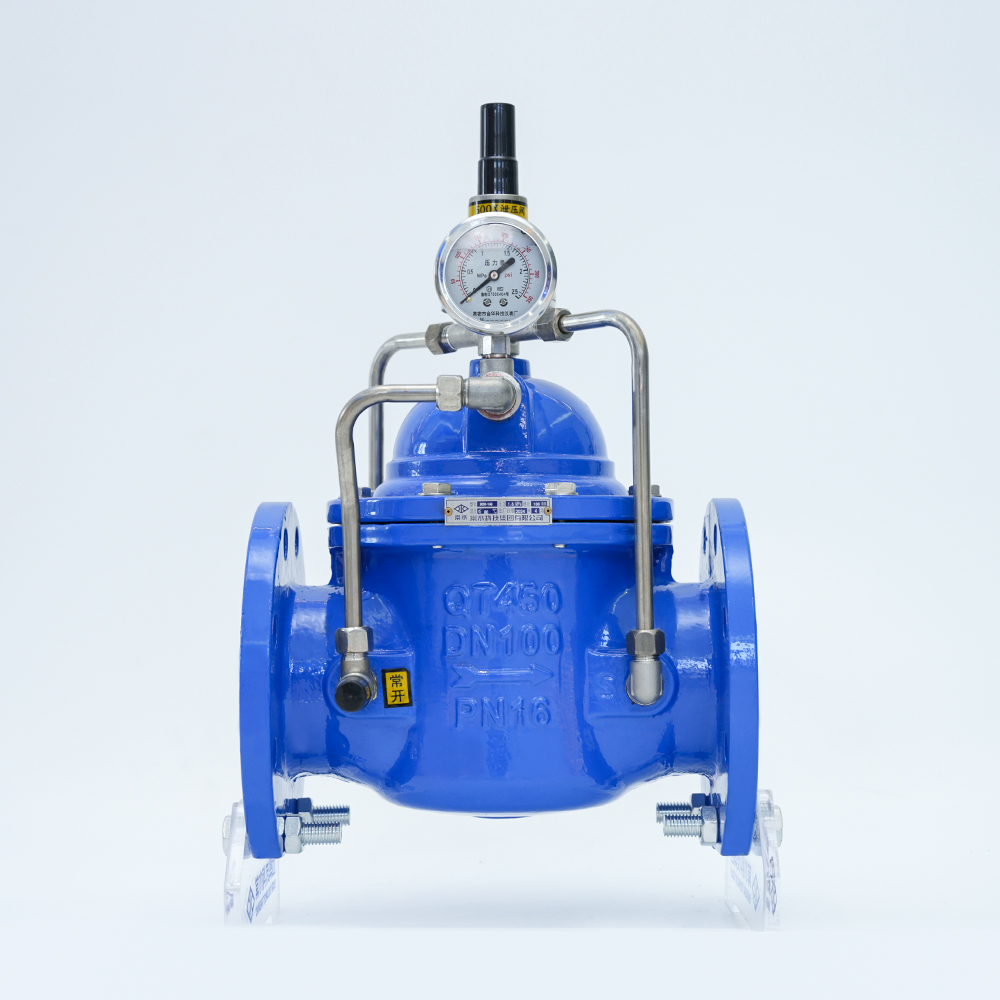

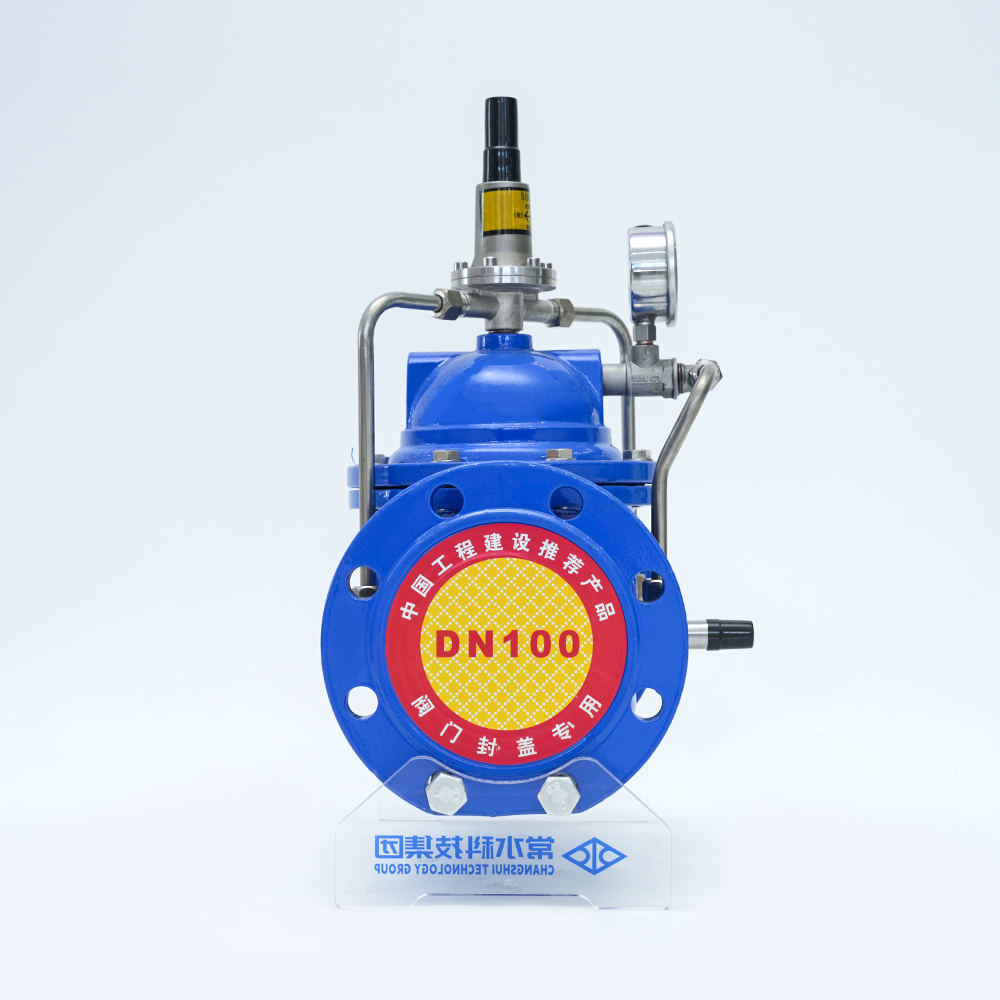

Safety Pressure Holding/Pressure Relief Valve 500X-16Q

The pressure-maintaining pressure relief valve consists of a main valve and an external control pilot valve. It is mainly installed in the bypass of the protected water supply system of the building to ensure the pressure of the water supply area upstream of the main valve. When the pressure in the water supply pipe exceeds the set pressure of the pressure relief valve, the pressure relief valve opens to prevent pipelines and equipment from being damaged due to overpressure. damage. This valve is mainly used for pressure relief in the fire test circulation system of high-rise buildings. It is an upgraded product of the spring-type safety valve.

  • Safety Pressure Holding/Pressure Relief Valve 500X-16Q
  • Safety Pressure Holding/Pressure Relief Valve 500X-16Q
  • Safety Pressure Holding/Pressure Relief Valve 500X-16Q
  • Safety Pressure Holding/Pressure Relief Valve 500X-16Q
  • Safety Pressure Holding/Pressure Relief Valve 500X-16Q
  • Safety Pressure Holding/Pressure Relief Valve 500X-16Q
Contact us

Description

Body material

Nodular cast iron

Model

500X-16Q

Specification

DN50-600

Nominal pressure

1.0/1.6/2.5Mpa

Operating temperature

0-80°C

Applicable media

water

Design standards

GB/24924-2016


Product Overview

The valve consists of a main valve and an external control pilot valve. It is mainly installed in the bypass of the building's protected water supply system to ensure the pressure of the water supply area upstream of the main valve. When the pressure in the water supply pipe exceeds the set pressure of the pressure relief valve, the pressure relief valve opens to prevent pipelines and equipment from being damaged due to overpressure. This valve is mainly used for pressure relief in the fire test circulation system of high-rise buildings. It is an upgraded product of the spring-type safety valve.

Installation Steps

1. A filter must be installed before the pressure relief/pressure maintaining valve.

2. When adjusting, the screw on the pilot valve should be withdrawn, start the water pump to let the water escape from the pressure relief valve, and gradually screw in the adjusting screw to gradually increase the pressure until the pressure needs to be set. After adjustment, tighten the locking nut.

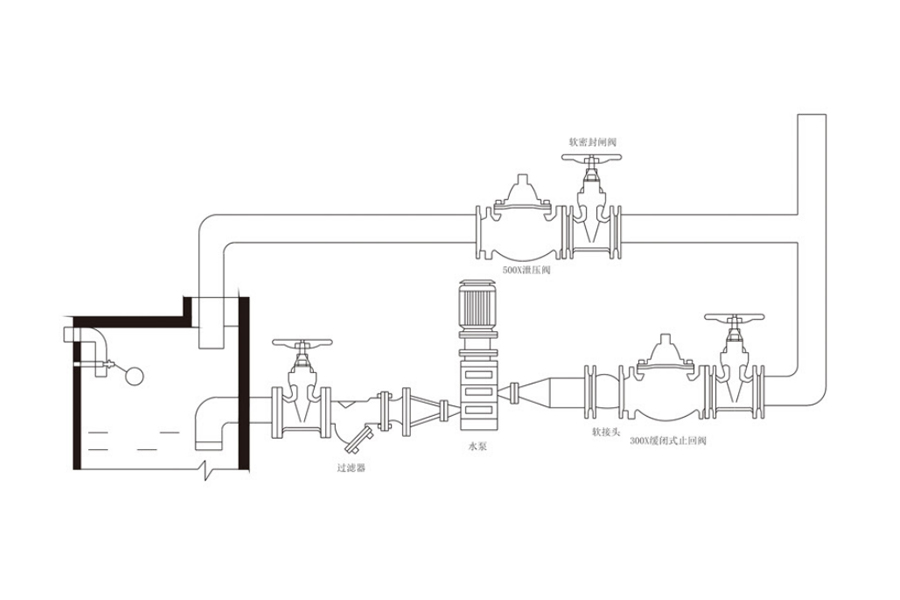

Installation Diagram
