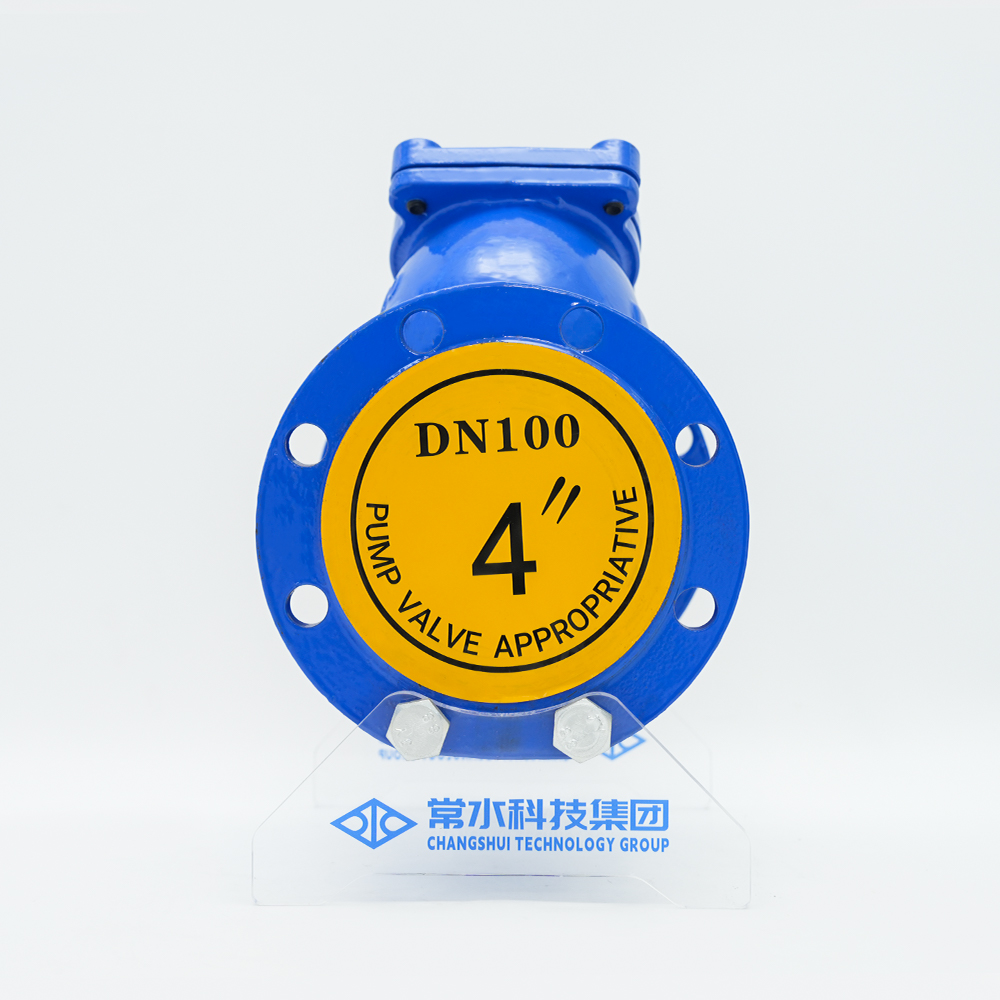

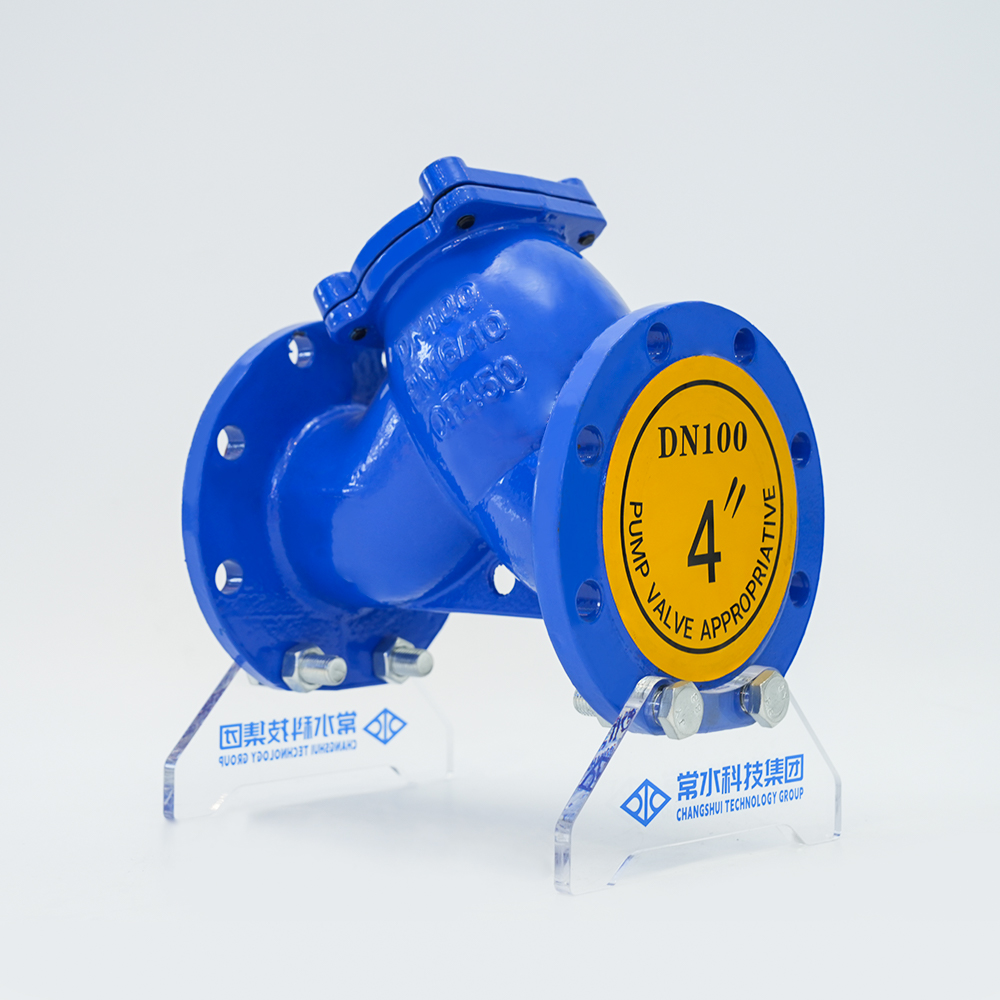

Cast Iron Y-type Filter GL41H-16Q

The function of the filter is a necessary filtration equipment for the use of hydraulic control valves and other precision mechanical products that are prone to clogging. It is usually installed at the inlet end of mechanical products that are prone to clogging to prevent particulate impurities from entering the channel and to avoid pipe blockage and valve damage. Other equipment may fail to work and cannot be used normally. The mesh number of the filter can be set according to needs: water 18-30 mesh, oil 100-480 mesh.

  • Cast Iron Y-type Filter GL41H-16Q
  • Cast Iron Y-type Filter GL41H-16Q
  • Cast Iron Y-type Filter GL41H-16Q
  • Cast Iron Y-type Filter GL41H-16Q
  • Cast Iron Y-type Filter GL41H-16Q
Contact us

PREV：Remote Control Float Valve 100X-16QNEXT：Self-operated Differential Pressure Control Valve ZYC-16Q
Description

Body material

Nodular cast iron

Model

GL41H-16Q

Specification

DN40-600

Nominal pressure

1.0/1.6/2.5Mpa

Operating temperature

0-80°C

Applicable media

water

Design standards

GB/24924-2010

Product Overview

The y-type filter is an indispensable device in the pipeline system for conveying media. It is usually installed at the inlet end of a pressure-reducing valve, pressure relief valve, fixed water level valve, or other equipment to remove impurities in the medium to protect valves and equipment. of normal use.

The filter has the characteristics of a simple structure, low resistance, and convenient sewage discharge. The applicable media can be water, oil, and gas. Generally, the water mesh is 18~30 mesh, the ventilation mesh is 40~100 mesh, and the oil mesh is 100~480 mesh. The filter can be manufactured according to user requirements. Medium temperature ≤225℃


Product Technical Parameters

Model Form of connection Nominal pressure
PN(MPa)		 Withstand Pressure Test Pressure
(Mpa)		 Operating Pressure
(MPA)
GL41H-10 flange 1.0  1.1 1.0
SY4P-16 flange 1.6 1.76 1.6
SY4P-25 flange 2.5 2.75 2.5

Housing material Filter Total mesh area
Gray iron stainless steel 3~4DN
nodular cast iron

carbon steel

Product Size Parameters

DN
(mm)		 Dimensions (mm)
L H H1
65 250 198 270
80 280 210 295
100 350 250 344
125 400 305 422
150 440 358 485
200 500 450 602
250 580 503 710
300 670 578 815
350 780 598 844
400 850 618 872
450 850 693 978
500 1000 765 1080
